VFTI Touchscreen force and torque indicator

Mecmesin | VFTI touchscreen force and torque indicator

A powerful and versatile touchscreen display unit for use with Mecmesin's 'Smart' range of interchangeable force and torque sensors. Ideal for testing where high accuracy and flexibility are key requirements.

The VFTI , powered by Vector OS, instantly recognises the connected sensor and can be employed as a handheld device for testing on the move or it can be integrated into your own test rig as the core measurement device.

Talk to your Mecmesin representative in your country for solutions, pricing and support


Got a question about a product? Your local representative is...

Mecmesin/PPT Group, UK

Mecmesin | Intuitive touch background
Mecmesin | Vector Force Gauge (VFG) touchscreen digital force gauge

Intuitive touchscreen

The most advanced touchscreen force and torque gauges, powered by Vector OS.

Handheld instruments built for tough environments to deliver accuracy and reliability.

Force and Torque sensors

The VFTI, AFTI, VFG and AFG are versatile force and torque indicators designed for use with the Mecmesin range of 'Smart' tension and compression loadcells and 'Smart' static and rotary torque sensors.

Readings are displayed as live values with peak-hold function in both tension and compression, or for torque in both clockwise and counter-clockwise directions.

Data can be streamed as continuous or single readings for recording on PCs, printers and dataloggers.

VFTI product on its side showing dongle serial port connection to sensor/loadcell

Smart sensors for use with the VFTI and AFTI displays, as well as our VFG and AFG gauges.

A range of interchangeable force and torque sensors for measuring tension and compression and static or rotary torque with the VFTI/AFTI display or VFG/AFG.

Each 'Smart' sensor is delivered with its own connecting cable, which has a proprietary plug containing the calibration data for instant recognition by the VFTI/AFTI.

All 'Smart' sensors read from zero and are delivered at no extra cost with a full calibration certificate traceable to national standards.

Mecmesin issued sensor and device calibration certificates



Force Sensors

Tension & Compression - S-beam

S-beam shaped loadcells for measuring tension and compression

A range of 'Smart' S-beam shaped loadcells for measuring tension and compression. Various models to measure from 0 - 100 N right through to 0 - 100 kN.

Tension & Compression - S-beam (Junior)

S-beam (Junior) miniature loadcells for measuring tension and compression in confined spaces

A range of 'Smart' loadcells in a miniature S-beam shape. Suitable for measuring tension and compression for applications where available space is limited. Various models to measure from 0 - 1 N right through to 0 - 500 N.

Compression only - Load Button

Load button loadcell - smart miniature sensor for compression measurement only

A range of 'Smart' sensors for compression measurement only. Available in miniature and sub-miniature sizes for use where space is very limited. Compressive load is applied to the top of the sensor’s central dome. Various models to measure from 0 - 100 N right through to 0 - 50 kN.

Specialised Loadcells

Customised force sensor example - pedal force testing

In addition to the standard range of tension and compressions sensors, Mecmesin also offers specialised loadcells dedicated to specific applications.



Torque sensors

Rotary Torque Transducer - TTR (low-torque)

Smart rotary mini torque transducer/sensor for AFTI

Range of 'Smart' mini sensors for measuring rotary torque from 0 - 0.050 N.m right through to 0 - 1 N.m.

Rotary Torque Transducer - FAST (mid- & high-torque)

Smart rotary torque transducer/sensor for AFTI

A range of 'Smart' sensors for measuring rotary torque from 0 - 2 N.m right through to 0 - 150 N.m.

Static Torque Transducer - TT-ST (low-torque)

Smart static torque transducer/sensor for low torque applications

A range of 'Smart' sensors for measuring static torque from 0 - 0.05 N.m right through to 0 - 2 N.m.

Suitable for bench-mounting or integration into a complete test rig. Equipped with 1/4" hex drive (or 3mm bore) for the fitting of adaptors.

Static Torque Transducer - ST (mid- & high-torque)

Smart static torque transducer/sensor for mid-to-high torque applications

A range of 'Smart' sensors for measuring static torque from 0 - 1.5 N.m right through to 0 - 1000 N.m.

Suitable for bench-mounting or integration into a complete test rig. Equipped with a square-drive of 3/8" to 1" for the fitting of adaptors.

Static Torque Screwdriver - TTH (low-torque)

Smart mini torque screwdriver sensor for low/miniature testing applications

A range of fine-precision, low-capacity torque screwdrivers for handheld applications. Suitable for the measurement of very fine static torque from 0 - 0.01 N.m right through to 0 - 1 N.m. Equipped with 1/4" hex drive (or 3mm bore) for the fitting of adaptors.

Note: If your application requires multiple rotations of the sensor in one direction, we recommend using a rotary torque transducer.

Static Torque Screwdriver - TS (mid-torque)

Smart torque screwdriver transducer for mid-capacity torque applications

A range of mid-capacity torque screwdrivers for handheld applications. Suitable for the measurement of static torque from 0 - 0.3 N.m right through to 0 - 10 N.m. Supplied as standard with a Jacobs-style 3-jaw chuck that can be removed to allow 3/8" square-drive to be used.

Note: If your application requires multiple rotations of the sensor in one direction, we recommend using a rotary torque transducer.

Emperor™ Software

VectorPro Lite background image screen and logo
Mecmesin | Vector Force Gauge (VFG) touchscreen digital force gauge

Vector OS

Our touchscreen instruments are powered by Vector OS, Mecmesin's technology platform for its latest force and torque test equipment. It delivers intuitive and customisable user interfaces, as well as advanced data acquisition and analysis.

To enhance your testing power you can connect all Vector instruments to a computer and use Mecmesin's VectorPro Lite software for data plotting and reporting.

Advanced data acquisition and plotting

VectorPro Lite working interface screen on laptop

Live tension and compression values are captured and automatically sent to VectorPro Lite to plot the graph of force vs time/displacement.

This helps to visually identify and report on any events during a test that cannot be picked up through the instrument display.

To help determine whether your sample has met the necessary criteria, there is a suite of standard calculations with indicators of pass or fail to immediately alert the operator.

A statistical analysis of results per batch of samples is produced and then incorporated, together with the graphs, into a customisable PDF or CSV test report for your customer.

Collect data from instruments

Expand your force or torque gauge to plot the curve of tension, compression or torque on a graph.

Collect the data and use built-in calculations to see if results meet your pass/fail criteria.

Export the results and data to Excel or use them to generate test reports in PDF format.

User licences
Your licence key grants full and unlimited use - there's no hidden extras or limitations - you get the full package.

Key features

Design

  • Intuitive workspace and 'drag and drop' interface
  • Personalised settings to see data as it suits you
  • Touchscreen enabled

Control

  • Live plotting of data with auto-scaling of axis
  • Overlay multiple samples on the same graph
  • Colour coding of samples for instant identification

Report

  • Calculate results and clear Pass/Fail indicators
  • Customisable report templates
  • Email reports and export data to Excel

Overview

The VFTI Force and Torque Indicator is an advanced touchscreen display unit designed to meet the needs of force and torque measurement applications. It connects seamlessly with Mecmesin's 'Smart' sensors, automatically recognising calibration data for accurate measurements.

At its core is the Vector OS software, featuring a user-friendly 5" colour touchscreen. Its intuitive interface allows for easy operation, with swipe and pinch-and-zoom gestures for navigation and customisation. The display can be tailored to show only relevant information.

The VFTI offers a range of measurement features and analysis capabilities:

  • Compatible with various tension, compression, and torque sensors.
  • Configurable colour display for simplicity or detailed readings.
  • Graphing mode for real-time curve visualisation.
  • High-speed internal sampling for accurate capture of sudden force changes.
  • Visual alarms and overload warnings for operator safety.
  • Statistical analysis and data storage options.
  • Expandable external memory for extensive data storage.
  • Direct output to PC or printer for further analysis.

Built with a rugged aluminium housing and powered by a rechargeable battery, the VFTI is both durable and portable. It's suitable for use indoors or outdoors and can be integrated into test rigs for various applications in production, quality control, or research and development.

Product datasheets

VFTI Touchscreen Force & Torque Display - Sales Flyer (PDF) VFTI Touchscreen Force & Torque Display - Sales Flyer (PDF)
Interface Cables - Datasheet (PDF) Interface Cables - Datasheet (PDF)

Product Brochures

Digital Force and Torque Gauges - Brochure (PDF) Digital Force and Torque Gauges - Brochure (PDF)
Digital Force and Torque Sensors - Brochure (PDF) Digital Force and Torque Sensors - Brochure (PDF)

Features and benefits

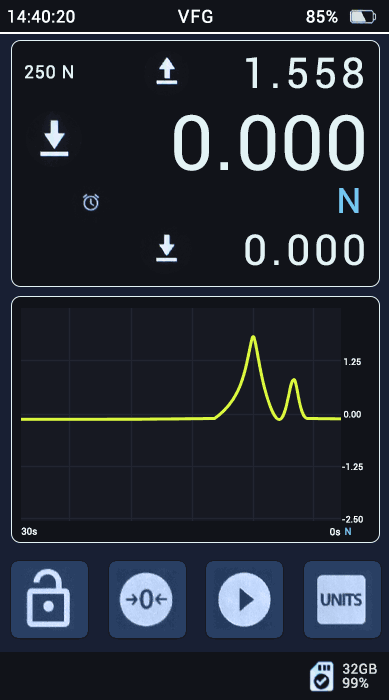

The VFTI features a two-part display: the top section shows peak readings in various units, while the bottom section offers a live graph of applied force or torque. This allows for easy identification of crucial events not evident from peak readings alone.

Moreover, the lower section can present statistical insights such as Maximum, Minimum, Average, and Standard Deviation. These metrics are calculated from the peak readings stored in the VFTI's onboard memory, which can hold over 500 readings.

Measurement

Tension, compression and torque measurement with peak-hold function and full unit conversion of the displayed value.

Operating at an internal sampling rate of 20,000 Hz measurements can be displayed in:

Torque

  • N.m, mN.m, cN.m, daN.m
  • kgf.cm, gf.cm
  • lbf.in, lbf.ft, ozf.in

Force

  • N, mN, cN, daN, kN
  • kgf, gf
  • lbf, ozf

Connectivity

Retrieve readings from the internal memory, send them individually from the display via RS232 output, or stream them continuously to a PC. For mobile use without a PC, store all data points from a test externally on a 32GB micro-SDHC card and transfer them later for thorough analysis on a PC.

Mecmesin's VectorPro Lite software, widely favoured, offers plotting, calculation for results, and compiling test reports. Pick from a range of interface cables to connect the VFTI to your device.
